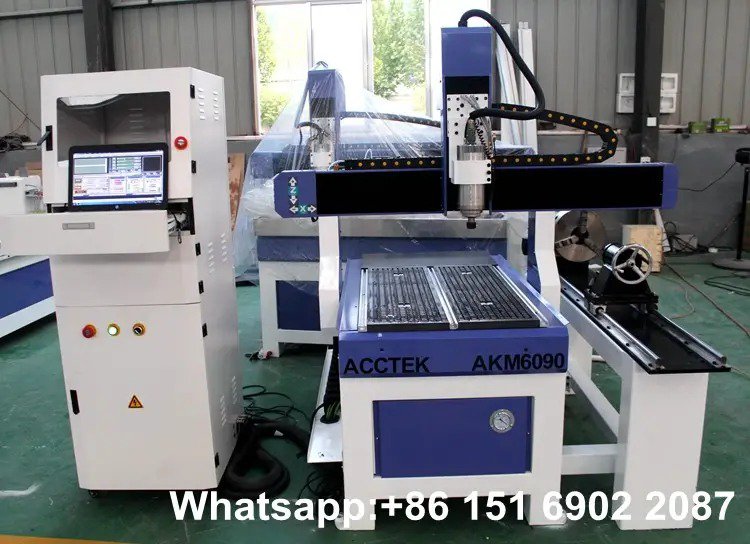

4 Axis CNC 6090 China Mini DIY Desktop Hobby CNC Router Kits For Sale
More than 10 available
Details
Shipping: US-Mainland: free (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
. It is widely used for production of cynlinder wood sculpture, wood legs, 3D relief of wood cabinet door, solid wooden door, computer desk, assembling furniture and large area and mass engraving on MDF and HDF, wood board, plane cutting, 3D embossment, etc.
2.Tool sensor enables the machine compensate the tolerance of the tool length.
3.Mach3 PC control system with USB port, separated keyboard control , 20mm Hiwin linear guide rail and TBI ball screw from Taiwan.
Description
Parameter
1
X-Y-Z Working Area
600*900*200mm
2
Table Size
890X1040mm
3
X-Y-Z Traveling Positioning Accuracy
± 0.03/300mm
4
X-Y-Z re-positioning Positioning Accuracy
± 0.02mm
5
Table Size
Vacuum and T-slot Extrusions
6
Frame
Cast Steel and Welding
7
X, Z Structure
Taiwan Ball Screw
8
Y Structure
Ball Screw and Hiwin Rail Shaft Linear Bearings
9
Max. Power Consumption(Without spindle)
3.0KW
10
Max. Rapid Travel Rate
6000mm/min
11
Max. Working Speed
4000mm/min
12
Spindle Power Motor
2.2 Kw Water cooled spindle
13
Spindle Speed
0-24000RPM
14
Drive Motors
Stepper System
15
Working Voltage
AC220V/50/60Hz
16
Command Language
G Code
17
Operating System
Mach3 PC Software
18
Interface
USB
19
Flash Memory
128M (U Disk)
20
Collect
ER20 ,ER16
21
X-Y Resolution
2.Tool sensor enables the machine compensate the tolerance of the tool length.
3.Mach3 PC control system with USB port, separated keyboard control , 20mm Hiwin linear guide rail and TBI ball screw from Taiwan.
